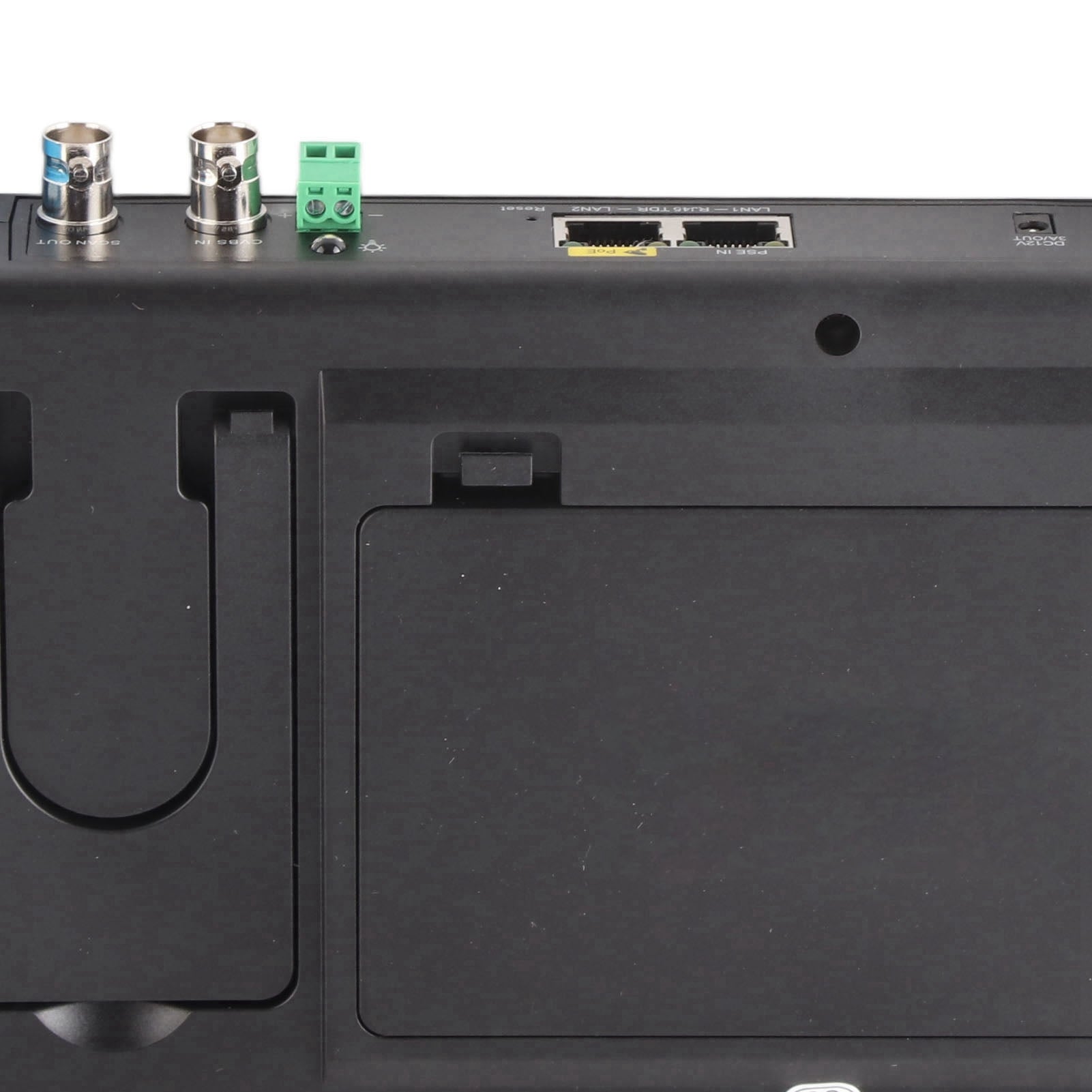

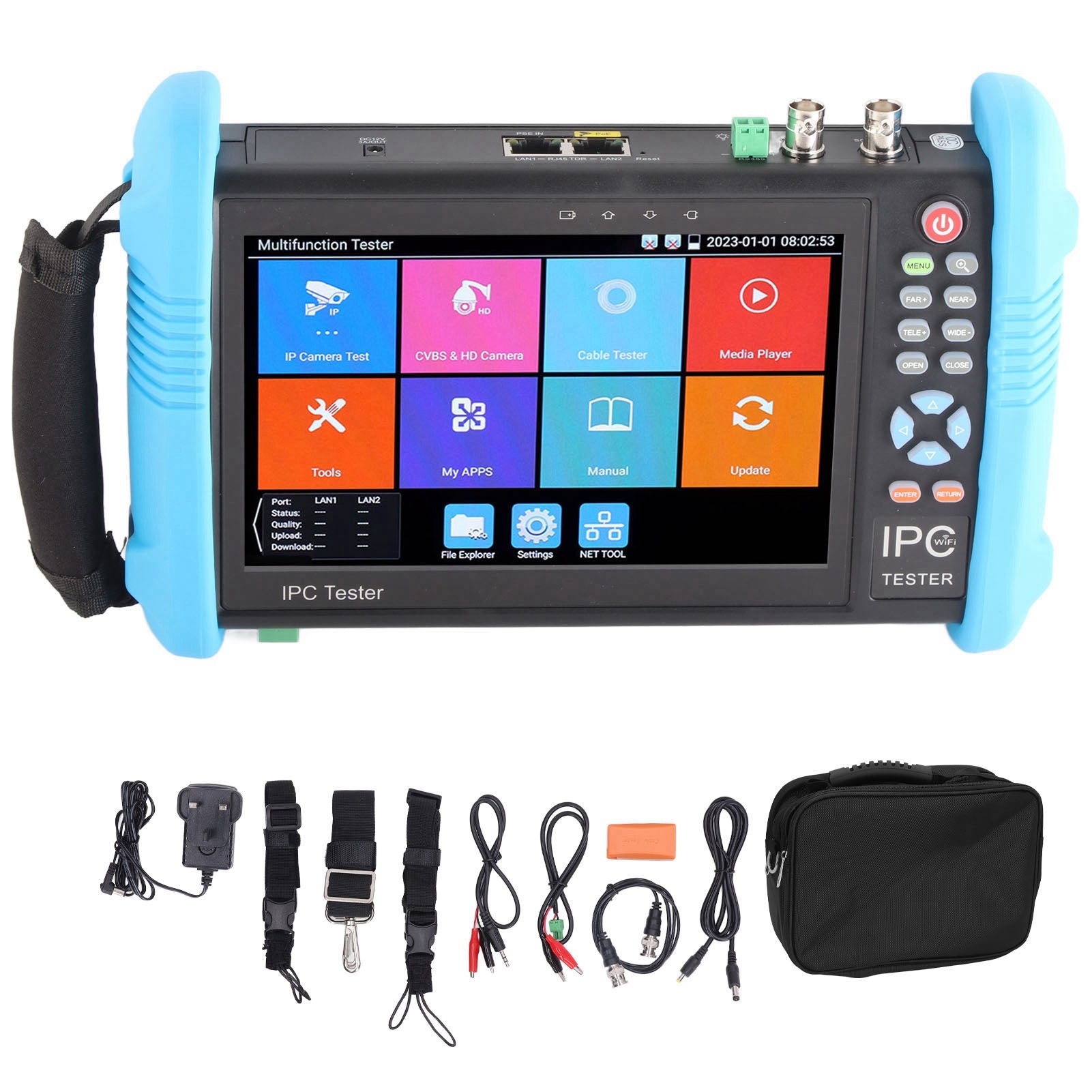

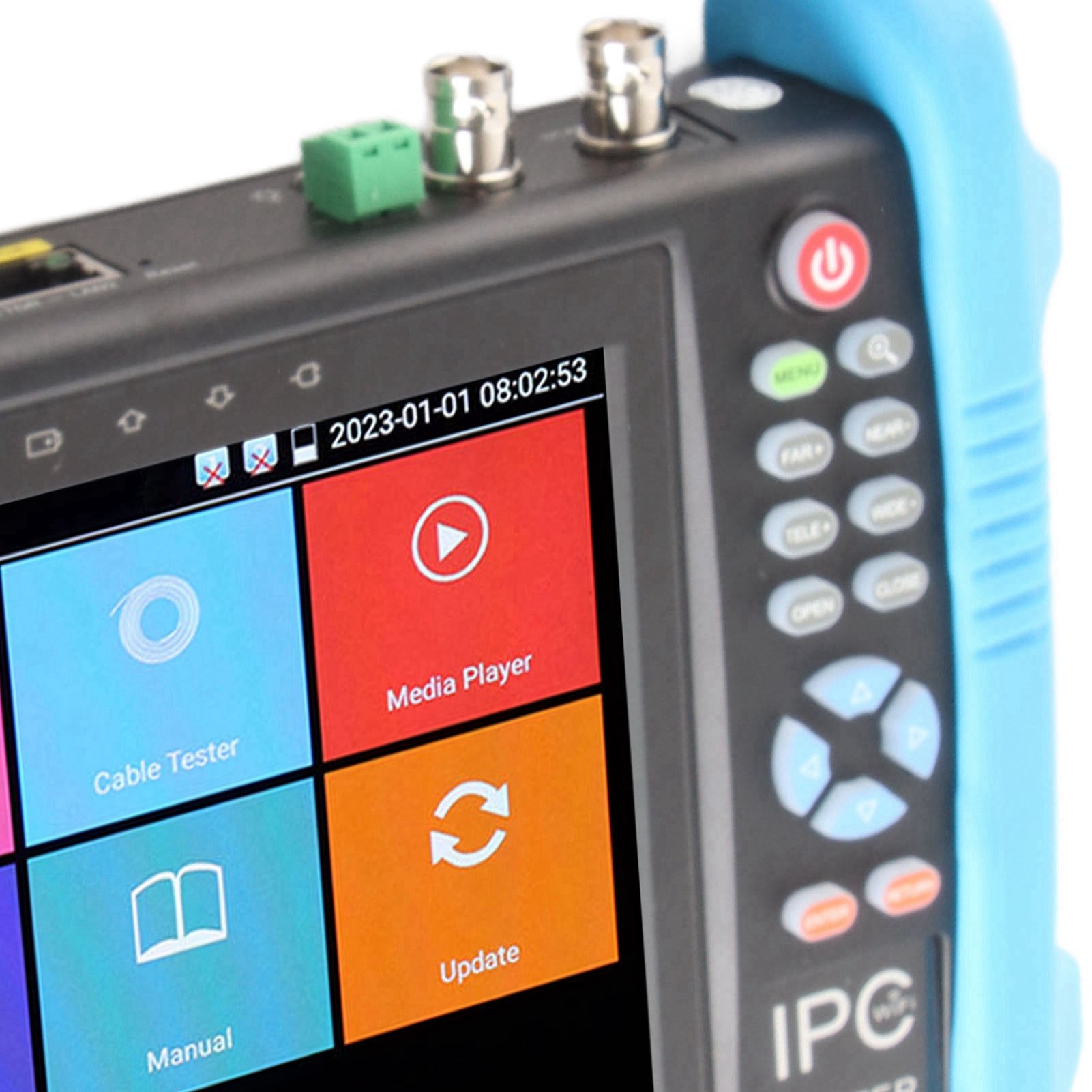

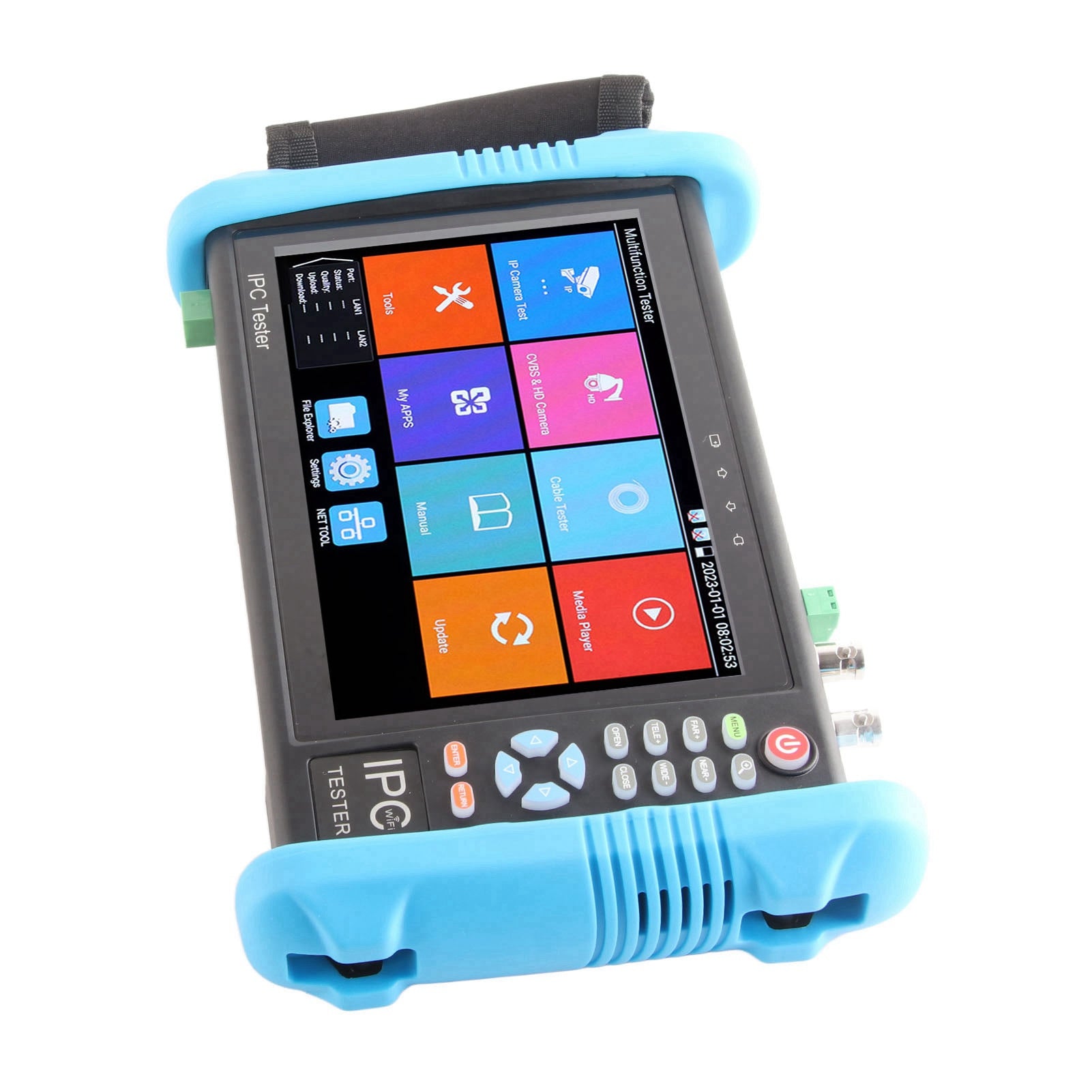

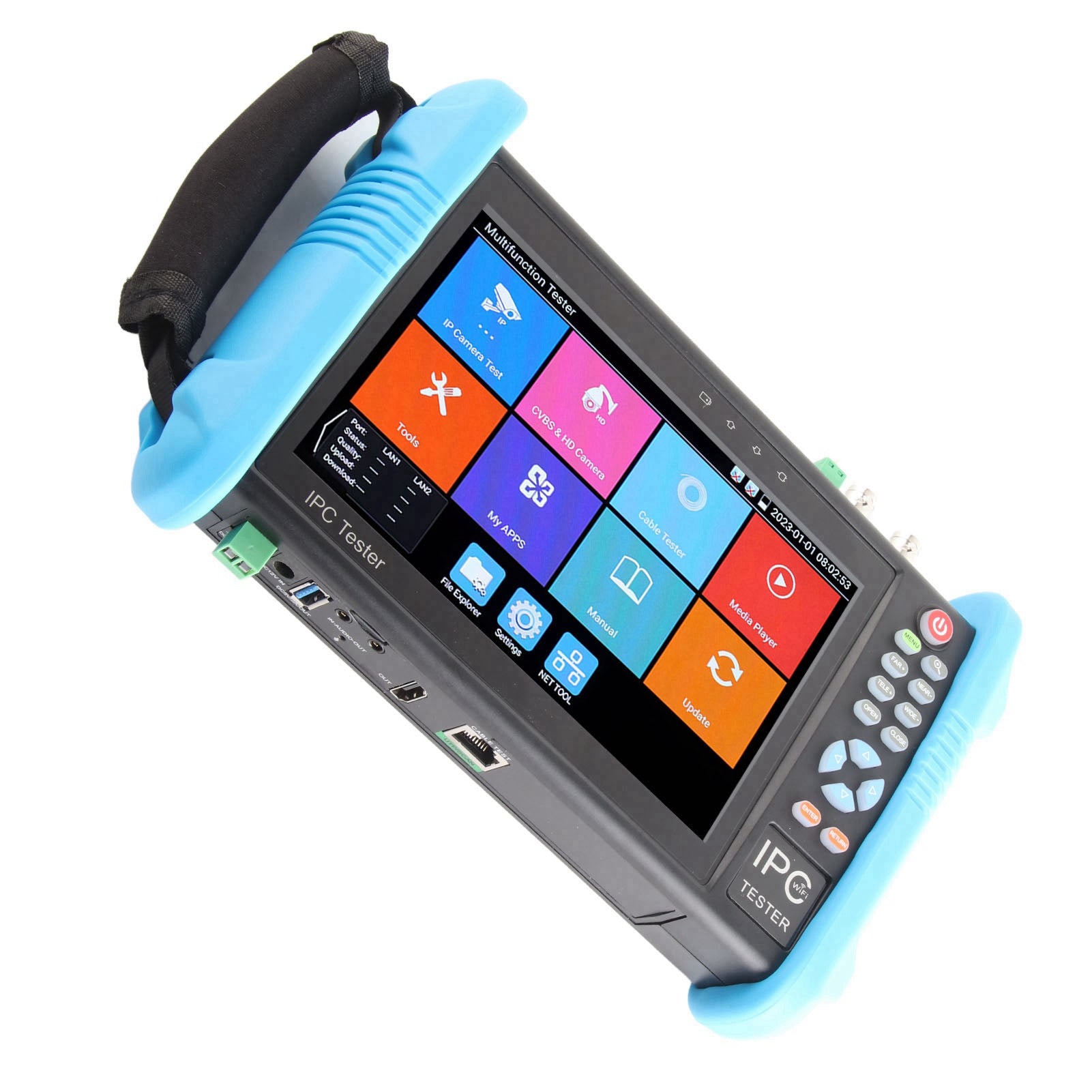

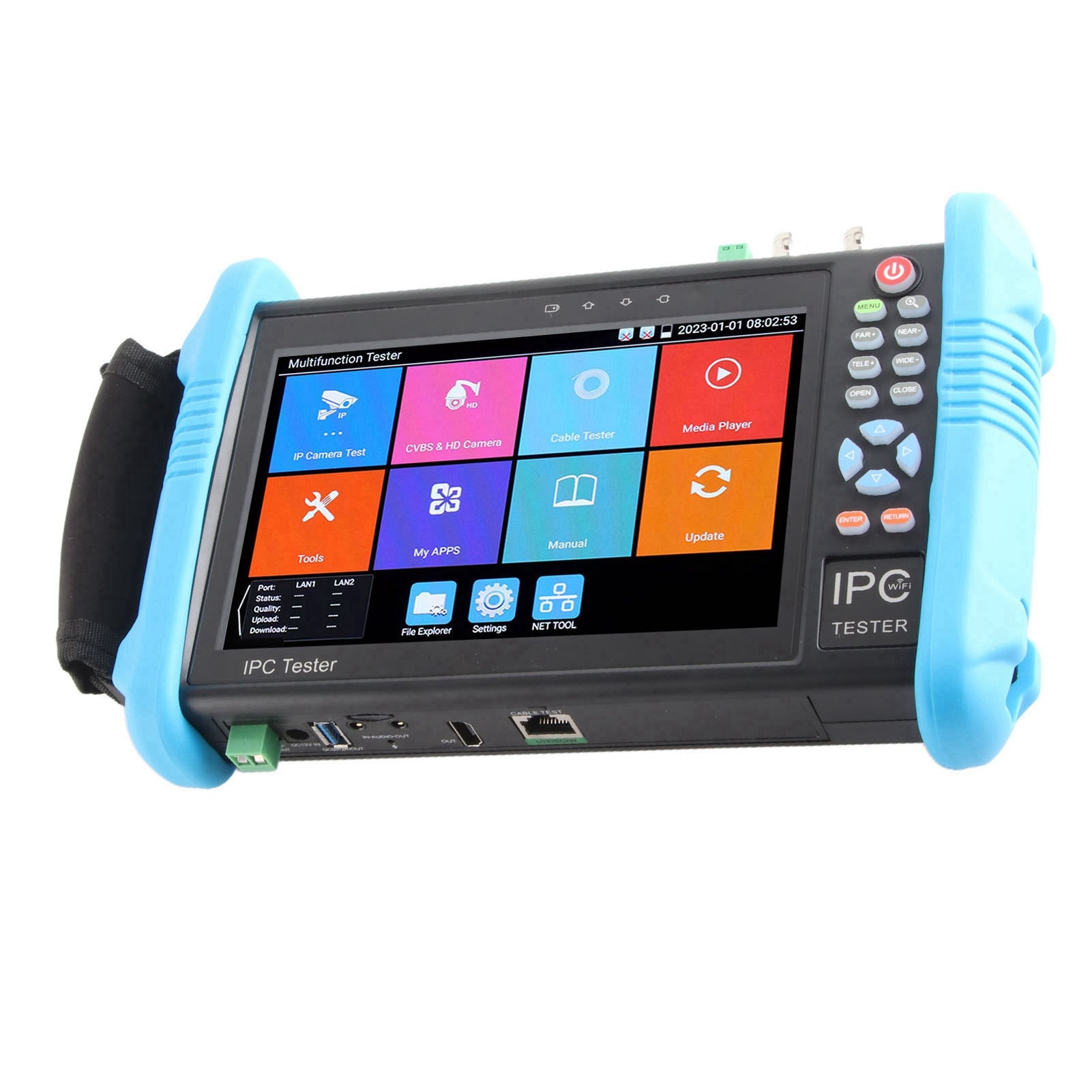

7in CCTV Tester IPC 9800PLUS 4K H.265 Camera Tester for CCTV Systems

Item Type: CCTV Tester
Material: ABS
Display Screen: 7 inch, IPS HD full view IPS capacitive touch screen, resolution 1920x1200
Network Port: 10, 100, 1000M adaptive, RJ45
WIFI: Built in wireless WIFI, with a speed of 150M, capable of receiving wireless network camera images, etc.
H. 265 Main Code Stream Test: Hardware decoding, supporting H.265 main code test camera images, with a maximum resolution of 4K.
One Screen Dual Display: Testing both network and analog cameras simultaneously.
IP Camera Testing: (with PTZ pan tilt control), ACTi, for IPC HFW2100P, for DS 2CD864 E13, for SNZ 5200, for TD NC9200S2, for IPC120L, for HICC 2300T, for IP5000 BC 13MP IRS06 13MP, for IPC, for Kumkang8900, for BY 1080Q, for WEISKY IPC, and more than 80 brand cameras. Customizable.
Lens Simulation: Simulate the display area of the "2.8, 3.6, 4, 6, 8, 12, 16, 25mm" lens image.
Focusing Information Testing: Camera focusing information, transmission signal quality, image quality testing.
IP Exploration: Searching for camera IP addresses across the entire network segment
Speed: Automatically log in to play images, activate cameras with 1 click, modify IP and other parameters, generate test reports, etc.
Testing Tool: camera 1 click activation, image testing, and the ability to modify parameters such as username, password, and IP.
Testing Tool: camera image testing, supports batch activation of cameras, and can modify parameters such as username, password, and IP.
CVBS Video Signal Testing:
CVBS Video Signal Level Measurement:
Measure the peak to peak, synchronization level, and burst level of video signals.
Video Image Enlargement: Supports analog video image enlargement, IP network camera image enlargement and movement.
Video Photography, Recording, Photo Browsing, and Video Playback:
Take screenshots and videos of the test screen, support Chinese naming and saving, photo browsing, and video playback operations.
Network Cable TDR Test:
Testing parameters such as network cable pair status, length, attenuation, reflectivity, impedance, delay deviation, etc.
PoE Power Output:
48V PoE power output, maximum power 25.5W.
DC 12V Power Output:
Output 12V maximum DC current of about 3A, providing temporary working power for the camera
USB 5V Power Output:
The 5V 2A power output function can be used as a mobile phone power bank function.
Theme Function:
Same Screen Display:
Dropdown Menu:
Audio Testing:
Pan Tilt Control Test:
Supports RS485 bus with a speed of 600 to 115200bps. Supports over 30 protocols including for Pelco D P, for Lilin, and for Yan
Color Image Generator:
Send PAL NTSC multi standard color bars through the video OUT port.
UTP Network Cable Test:
Test any two or more network cables, and the connection order and network cable number will be displayed on the screen.
Protocol Code Catch:
Built in serial port tool can receive and display RS485 protocol code data sent by the control device, and can also send hexadecimal code.
Network Testing Function:
IP address scanning, link scanning, P ING package testing. Quickly find the IP address of the IP camera or other device connected to the instrument.
Power Supply:
External Power Supply: DC 12V (2A)
Battery Power Supply: Built in 7.6V polymer li battery x 1, with a capacity of 7800mAh (shipped with built in battery)
Charging: Charging for 3.5 hours, can be used normally for 16 hours after a single charging
System Parameters:
Automatic Standby: off 1 to 30 minutes
Working Environment and Specifications:
Working Temperature: -10 ℃ to+50 ℃
Working Humidity: 30% to 90%
Memory Card: Shipped with card
