Package Dimensions:
Length: 15.00 cm
Width: 9.00 cm
Height: 6.00 cm

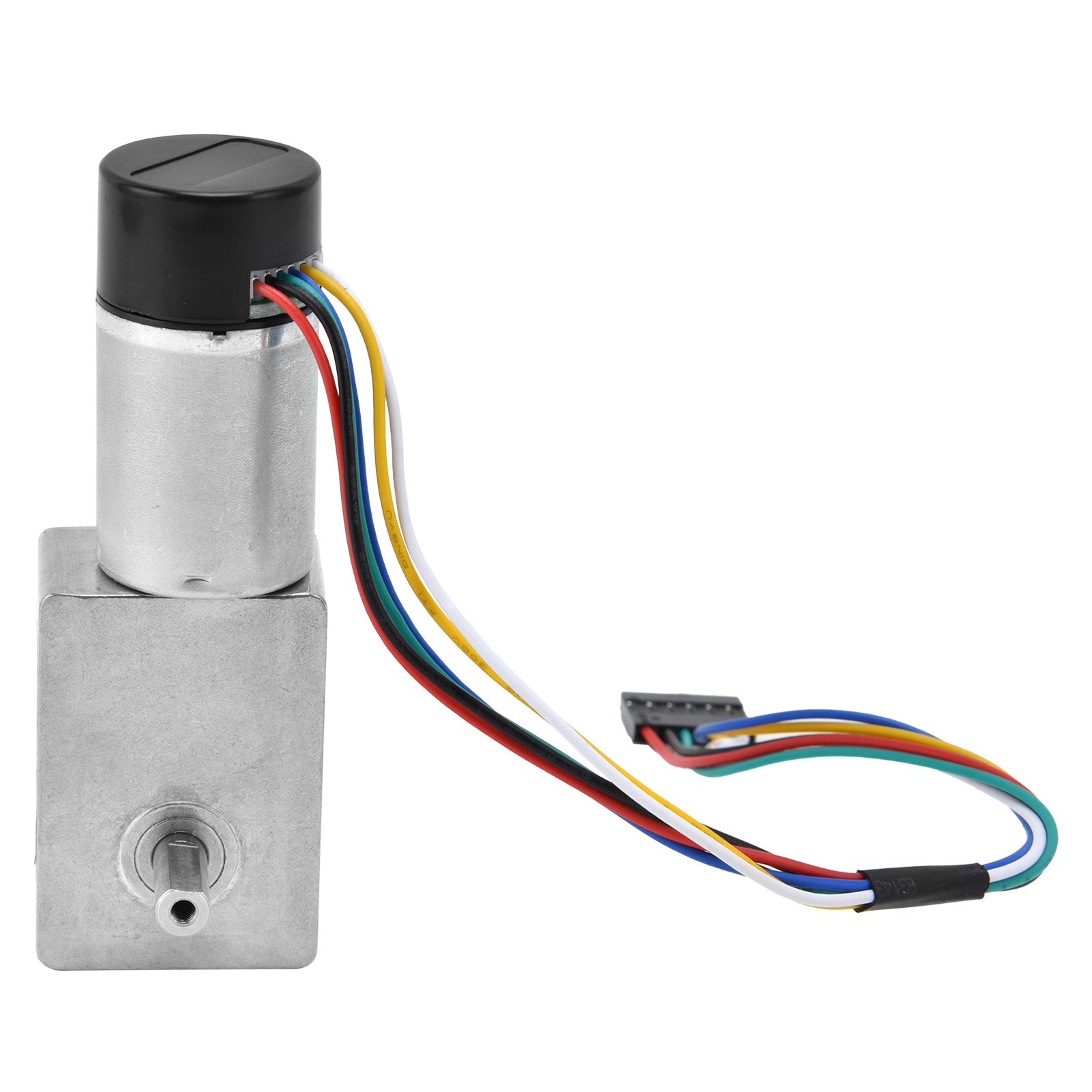

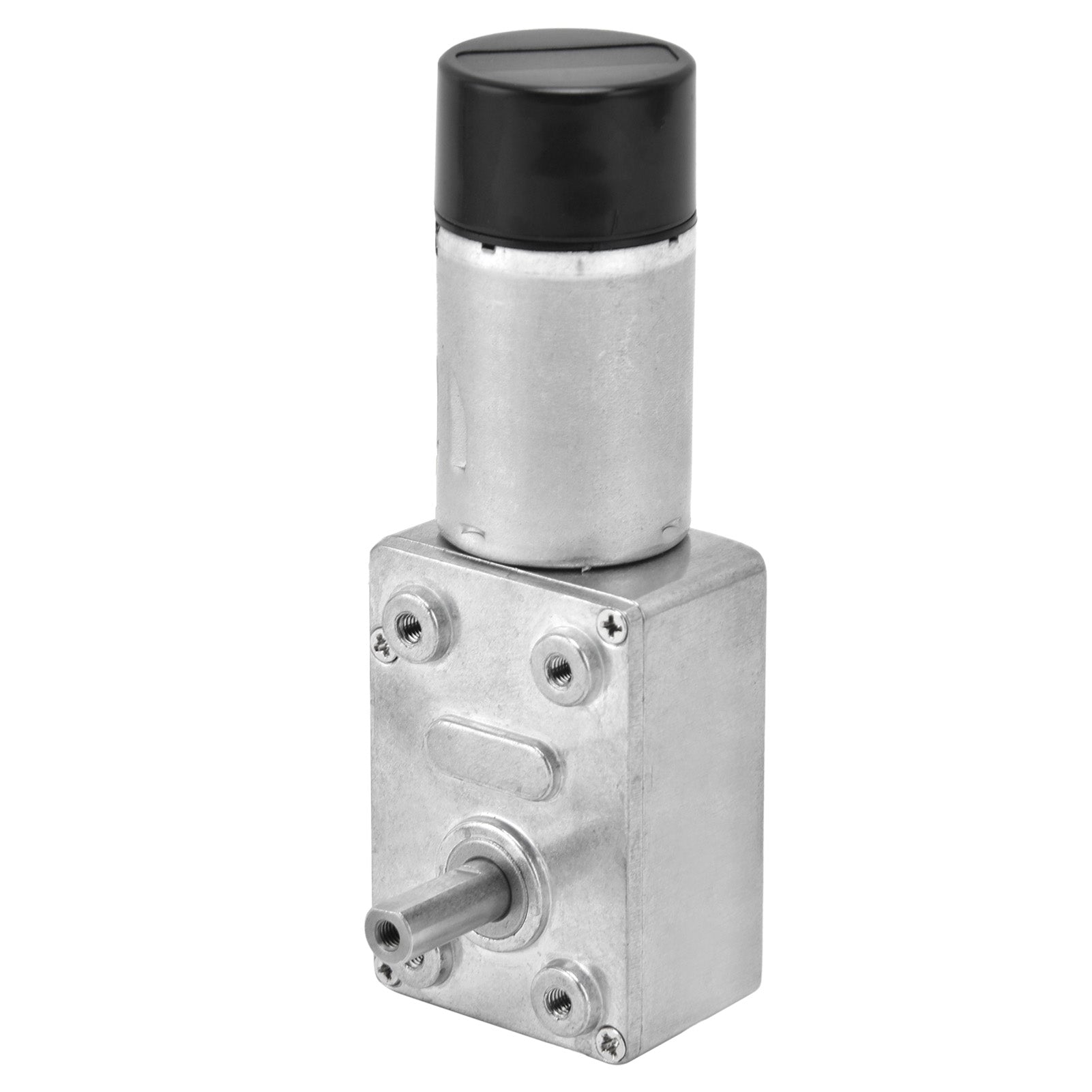

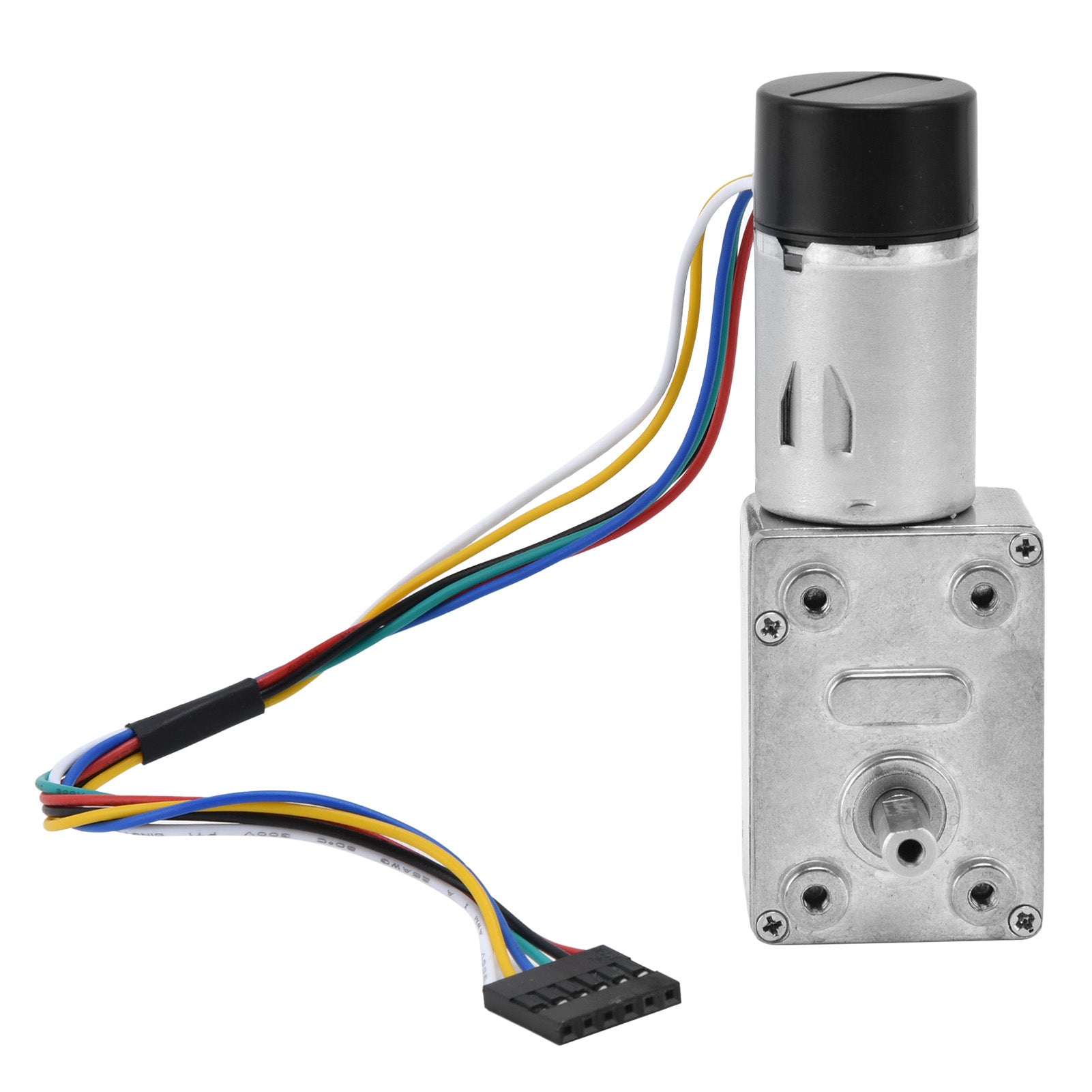

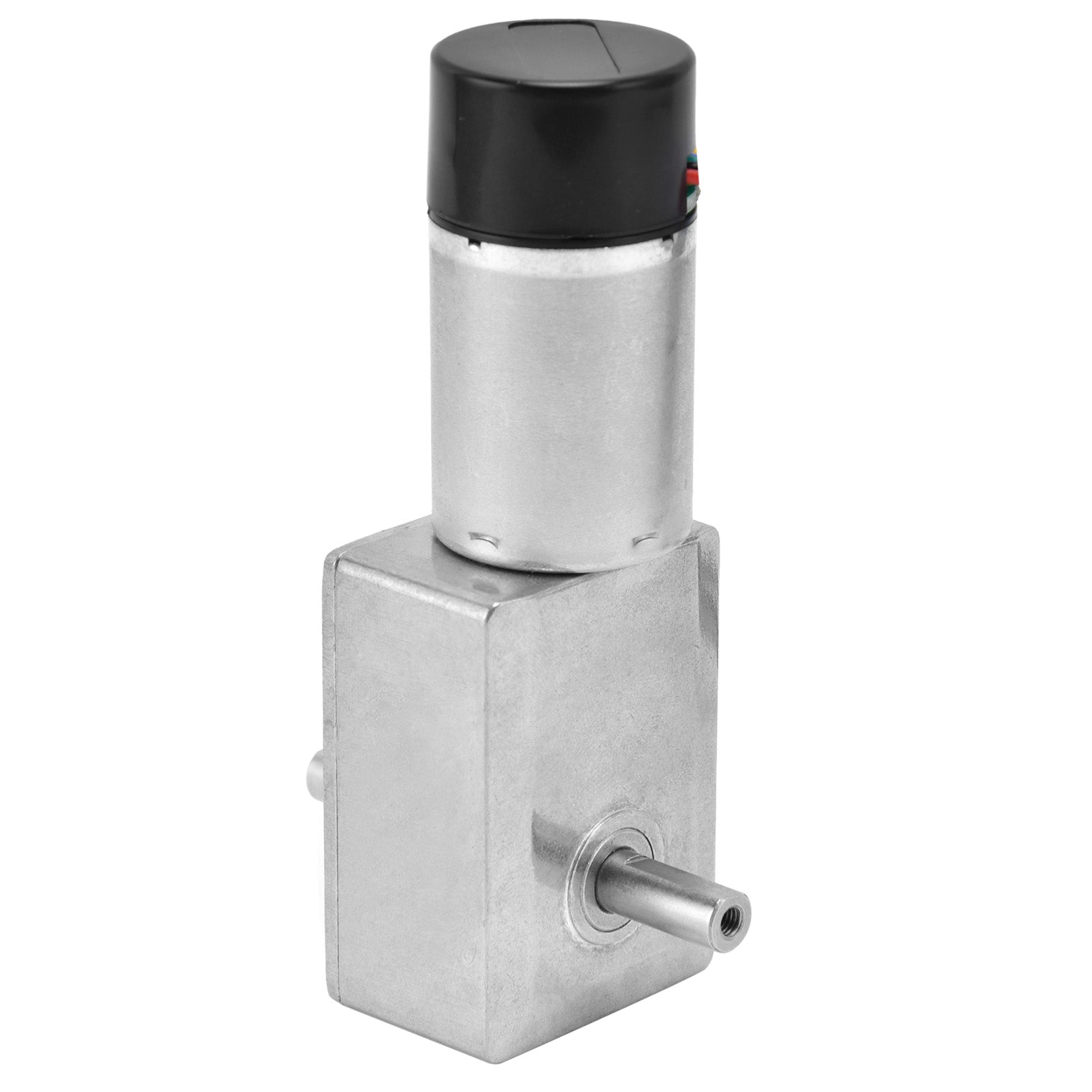

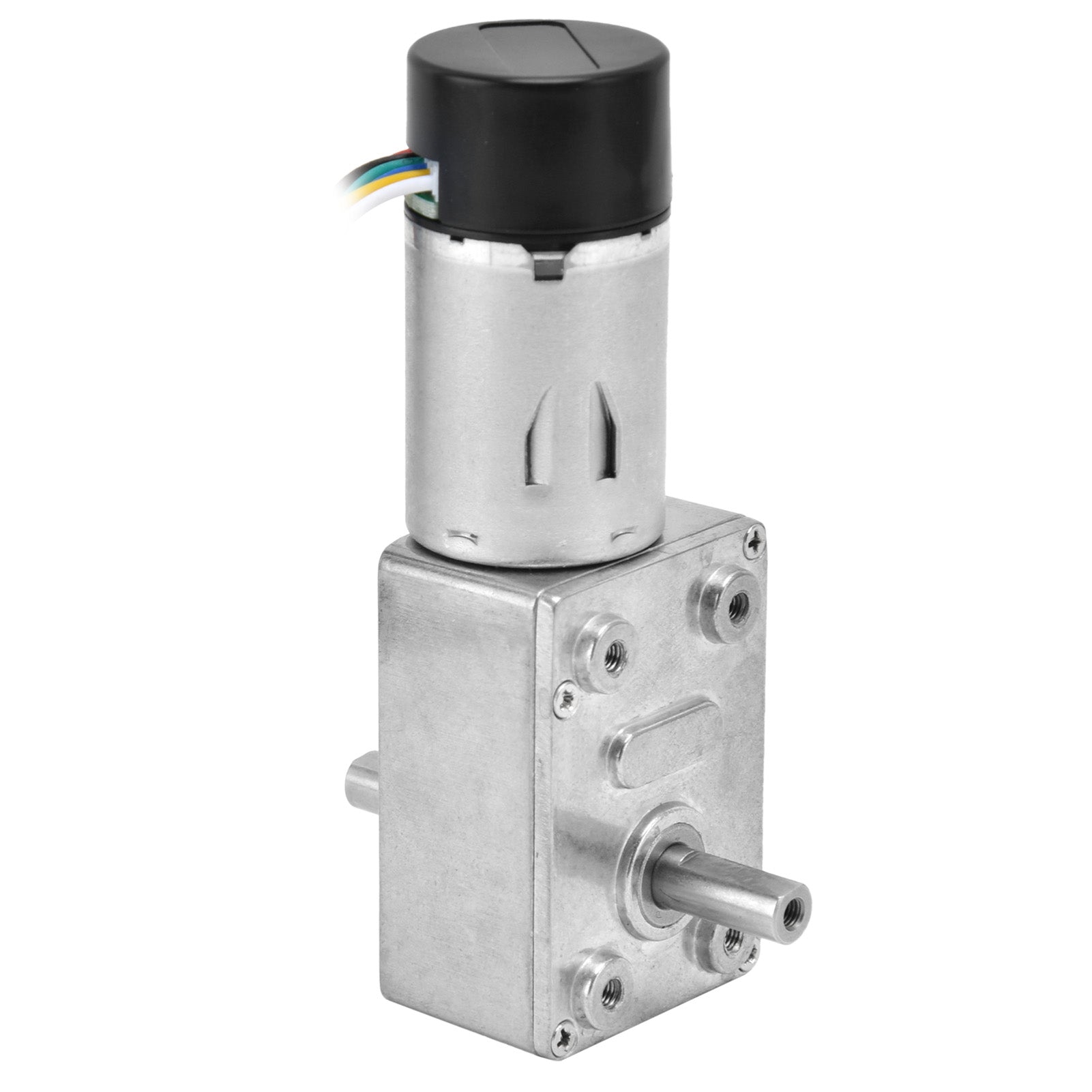

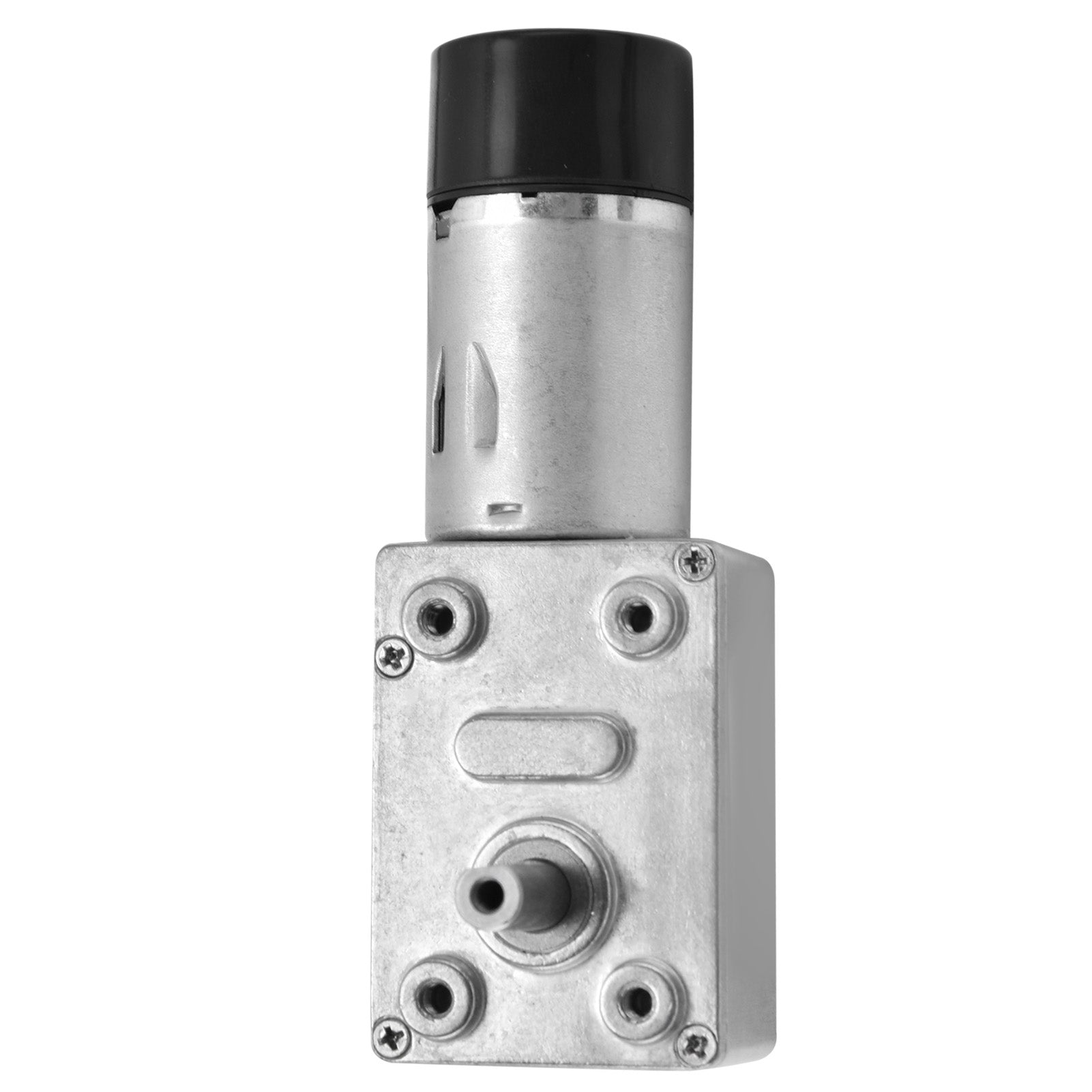

Item Type: DC Worm Gear Motor
Material: Zinc alloy, copper
Purpose: Industrial drive device
Output Shaft Diameter: Approx. 6mm / 0.2in
Output Shaft Length: Approx. 15mm / 0.6in
Shaft Type: D type
Speed Adjustment: Adjustable
Direction: CW and CCW
Cable Length: Approx. 230mm / 9.1in
DC 6V Parameter:
| Reduction Ratio(Change Ratio) | 40 | 65 | 90 | 150 | 200 | 260 | 340 | 600 | 1000 |
| No Load Current MA | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 |
| No Load Speed rpm | 150 | 90 | 66 | 40 | 30 | 23 | 18 | 10 | 6 |
| Rated Torsion Kg.cm | 0.2 | 0.5 | 0.7 | 2 | 5.3 | 6.7 | 9 | 15.9 | 26.5 |
| Rated Speed rpm | 120 | 70 | 51 | 30 | 22 | 18 | 15 | 7.5 | 4 |
| Rated Current A | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 |
| Maximum Torsion Kg.cm | 0.9 | 1.6 | 2 | 7.5 | 10 | 13 | 18 | 30 | 45 |
| Stall Current A | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 |
| Reduction Ratio(Change Ratio) | 40 | 65 | 90 | 150 | 200 | 260 | 340 | 600 | 1000 |
| No Load Current MA | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 |
| No Load Speed rpm | 150 | 90 | 66 | 40 | 30 | 23 | 18 | 10 | 6 |
| Rated Torsion Kg.cm | 0.2 | 0.5 | 0.7 | 2 | 5.3 | 6.7 | 9 | 15.9 | 26.5 |
| Rated Speed rpm | 120 | 70 | 51 | 30 | 22 | 18 | 15 | 7.5 | 4 |
| Rated Current A | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 |
| Maximum Torsion Kg.cm | 0.9 | 1.6 | 2 | 7.5 | 10 | 13 | 18 | 30 | 45 |
| Stall Current A | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 |
1、The DC worm gear motor has D type double shaft, with high hardness, good stability and excellent thermal conductivity. 2、The gear box is made of all metal materials, which is resistant to wear and rust, which can extend the service life of the motor 3、The encoder is coated with 3 layers of high density molecular paint to effectively isolate dust and greatly extend the service life. 4、The copper coil has super electrical conductivity, which makes the power output of the motor smoother. 5、Widely used in household appliances, office equipment, automotive automatic facilities, intelligent systems, automation control, and other industrial drive devices, etc.
1 x Gear Motor
