EBADA
Rs. 10,600.00
Package Dimensions:
Length: 15.00 cm
Width: 8.00 cm
Height: 5.00 cm
Item Type: Colorimeter
Model: LS170
Material: ABS
Battery: 1 x rechargeable lithium battery 3.7V 700mAh, a single full charge can continuously measure 10,000 times (Battery Included)
Application: Chroma sampling, color difference detection and comparison
Illumination Mode: 45/0 (45° circular illumination, 0° reception)
Lighting Source: Full spectrum LED light source
Measuring Caliber: Approx. 8mm / 0.3in
Measurement Conditions: Light source D65, field of view 10°
Measuring Time: About 1s
Color Space: CIE Lab, Luv. LCh, Yxy. CMYK, RGB, Hex
Color Difference Formulas: △E x ab, △E x 94, △E x cmc (2:1), △E x cmc (1:1) △E x 00
Repeatability: Standard deviation △E x ab, within 0.03 (measurement condition: after warm up correction, the average value of 30 measurements on the whiteboard at an interval of 3s)
Size: Approx. 31.7 x 31.7 x 70.4 mm / 1.2 x 1.2 x 2.8 in
Charging Interface: Type C
Data Transmission: APP, Bluetooth
Operating Temperature Range: 0~45℃, 0~85%RH (non condensing)
Storage Temperature Range: -25℃~55℃ 0~85%RH (no condensation)
Color Card Matching Accuracy rate: >90%
Color Threshold: Can be set
Compensation Optical Paths: Built in
QC Inspection: √
Data Sharing: √
How To Use:
Instrument operation
1. Power on/off
Power on: In the power off state, short press the key to power on, and the indicator light flashes after power on
Shutdown: Long press the button on the instrument to shut down; when the phone is not connected to Bluetooth, it will automatically shut down after 3 minutes of no operation, and when the phone is connected to Bluetooth, it will automatically shut down after 30 minutes of no operation
2. Bluetooth connection
Turn on the instrument, open the APP software, and first display the LOGO interface. After displayed for 3 seconds, enter the "Connect Device" interface and automatically start searching for Bluetooth devices. The searched devices will be displayed at the bottom of the interface. Click the device that matches the SN of the instrument and wait for the device to connect. After the connection is successful, it will skip to "calibration interface"
3. Measurement
After the APP is successfully connected to the instrument, enter the main measurement interface. There are two measurement modes, "color measurement" and "color difference contrast". After the APP is opened, the default "color measurement", the bottom of the main interface is two measurement switch buttons, the font of the button becomes blue when selected. The current measurement mode, instrument battery level, historical records, instrument model and connection status are displayed on the top information bar
4. Battery level
Display the current power of the instrument. When the battery power is empty, charge it in time
5. History
Click the history icon, if it is the color measurement interface, enter the "My Color" interface; if it is the color difference contrast interface, enter the "Comparison History" interface
6. Connection status
Display the connection status of the instrument. If the APP is connected to the instrument, the corresponding model will be displayed; if the APP has been disconnected from the instrument, it will prompt that the device is disconnected and the model is empty
1、[High Accuracy] With multiple electronic color cards, the closest color card number can be quickly matched, and the matching accuracy of the color card is greater than 90%. 2、[QC Detection Function] With QC detection function, the color difference threshold can be set, a variety of color difference formulas are available, and a variety of color spaces are available, which is convenient for color measurement with multiple needs. 3、[Color Sharing] Color data can be imported and exported, color sharing can be measured through for WeChat, for QQ, email, with single button, small size, simple operation and portable. 4、[Stable Value] Colorimeter built in compensation light paths, stable value, allowing long period calibration. Built in rechargeable lithium battery, a single full charge can continuously measure 10,000 times. 5、[Color Difference Contrast] Utilizing the large memory of the mobile phone APP and the convenient operation of the screen, the function of the color difference meter is greatly improved and expanded. With color difference contrast function, and can realize the rapid QC detection.

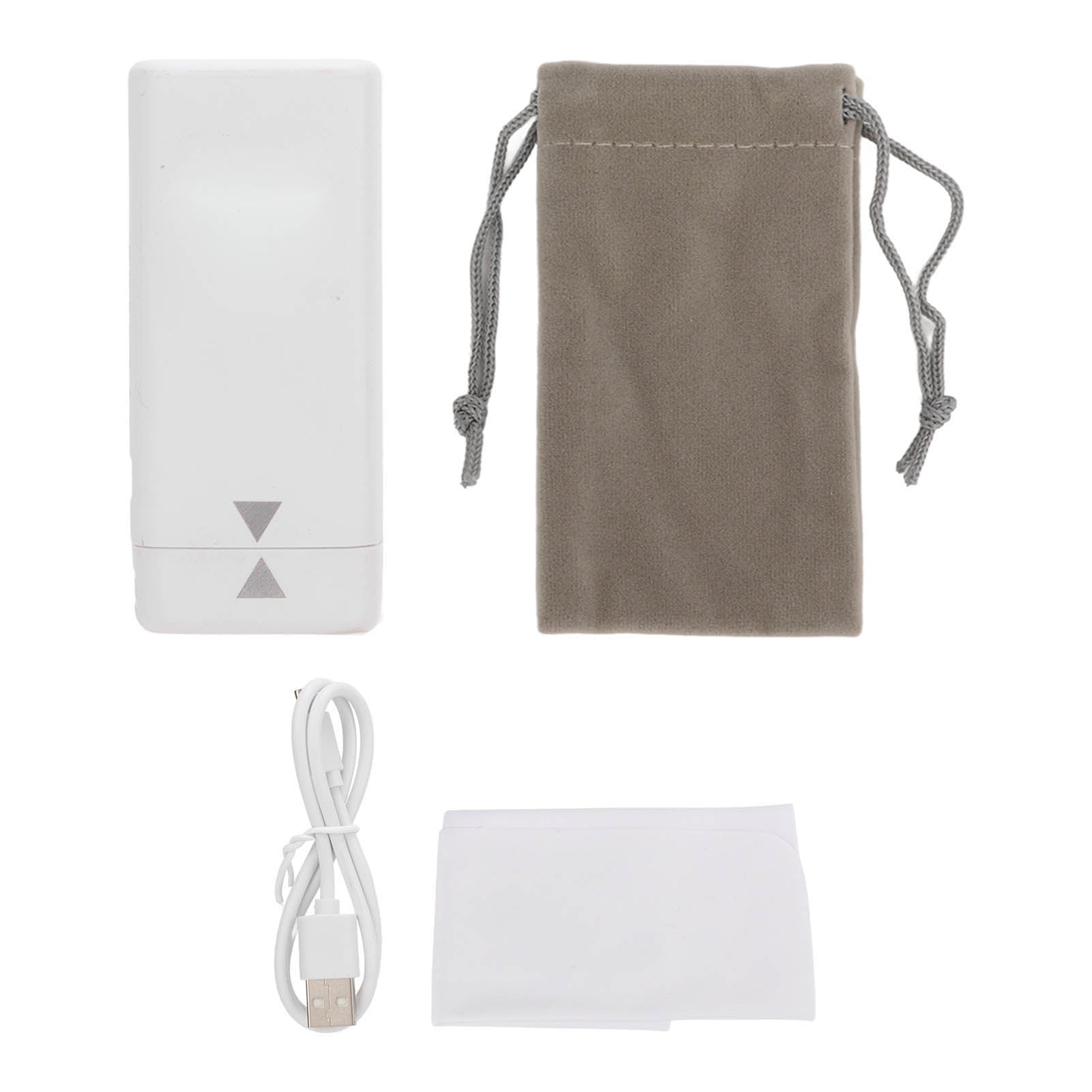

1 x Colorimeter (Battery Included)
1 x Data Line
1 x Storage Bag
1 x Cleaning Cloth
1 x Calibration Report
1 x Manual
