EBADA
Rs. 1,500.00
Package Dimensions:
Length: 15.00 cm
Width: 9.00 cm
Height: 6.00 cm

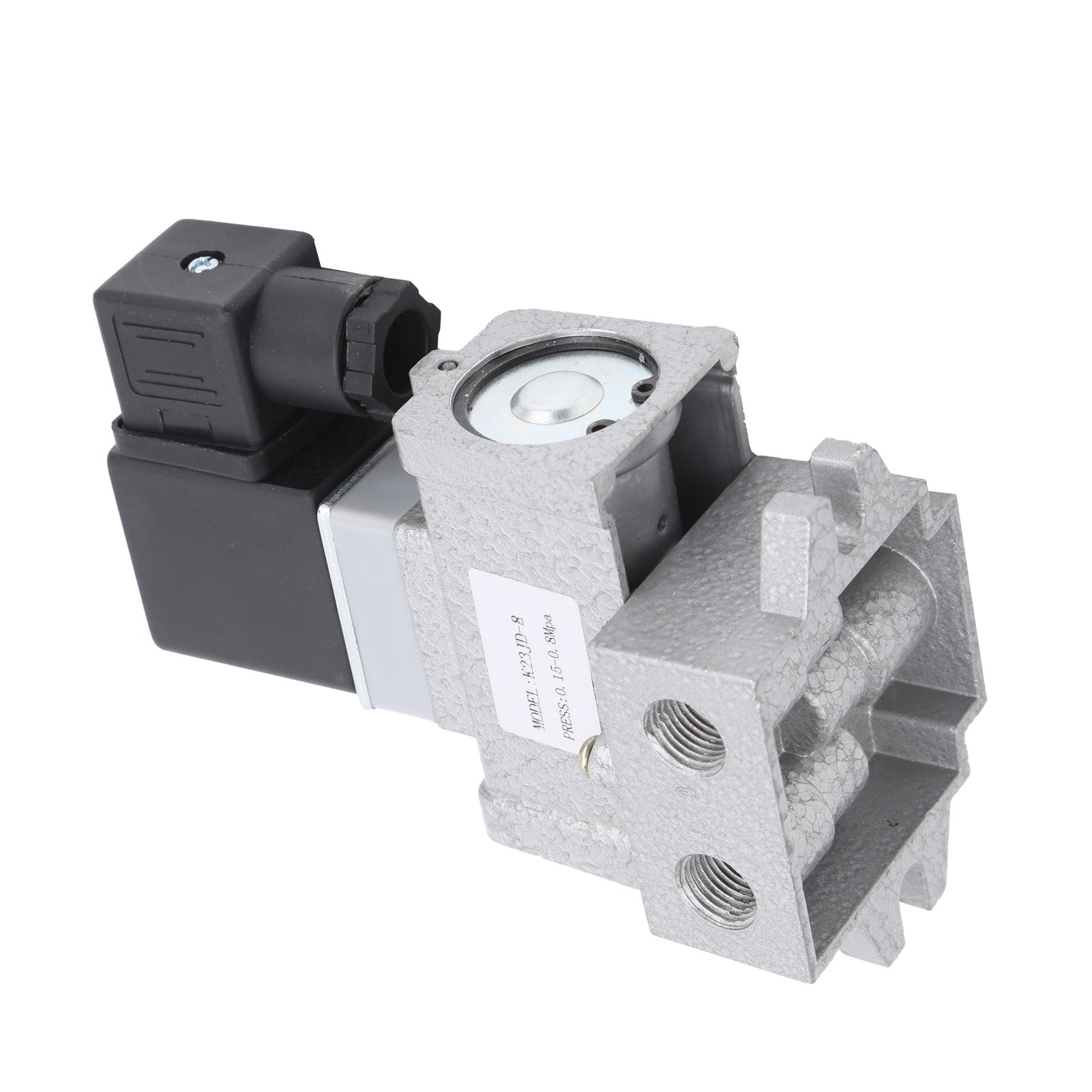

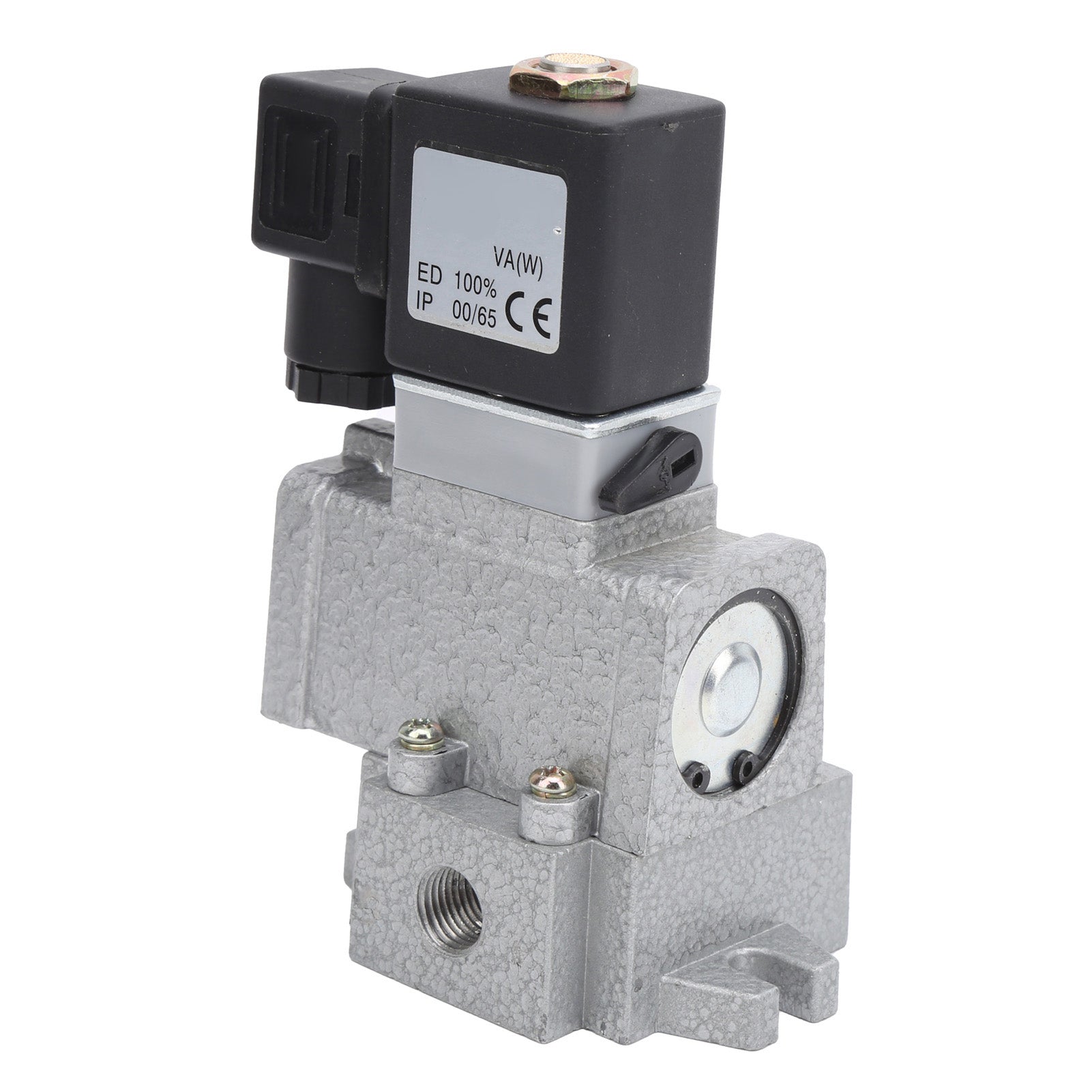

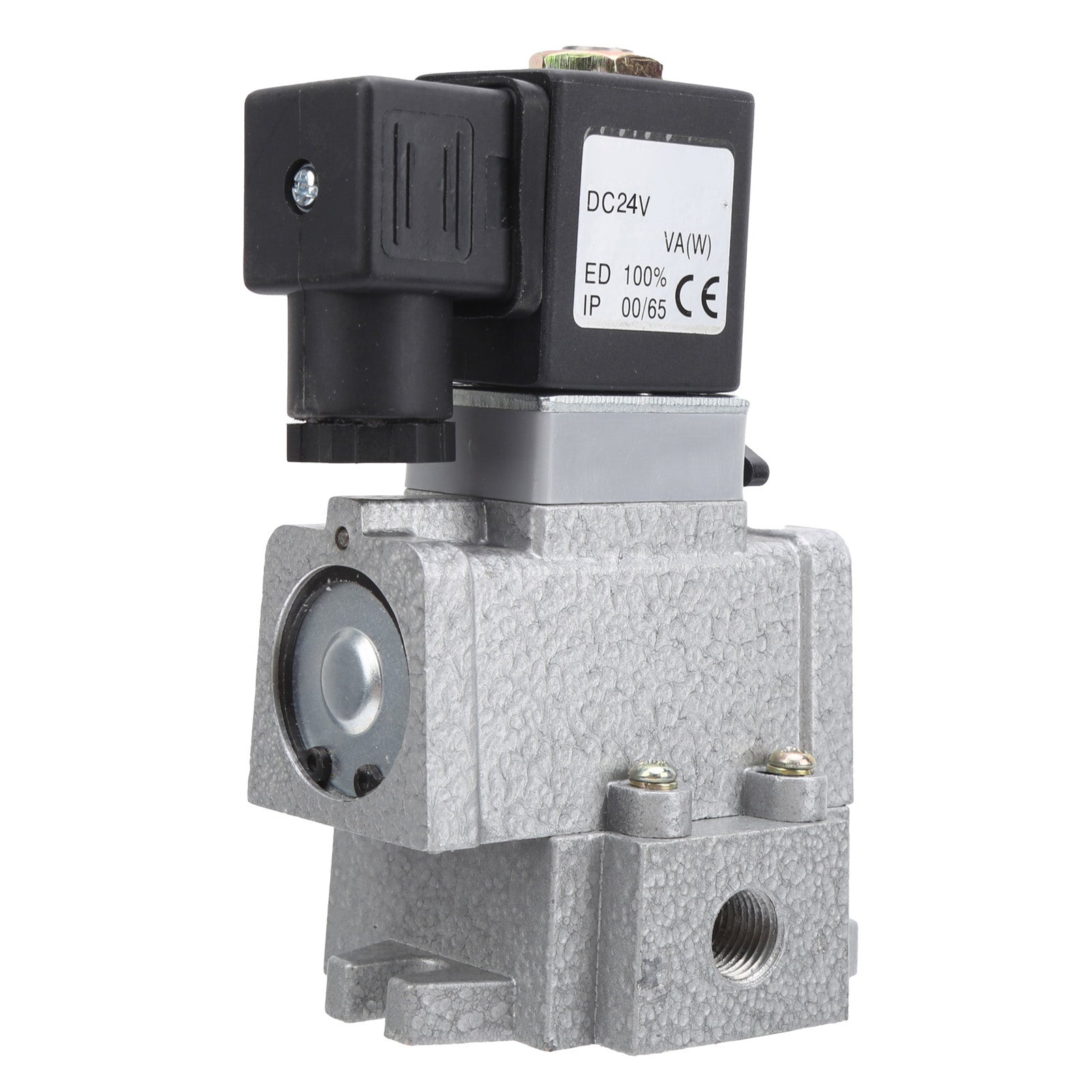

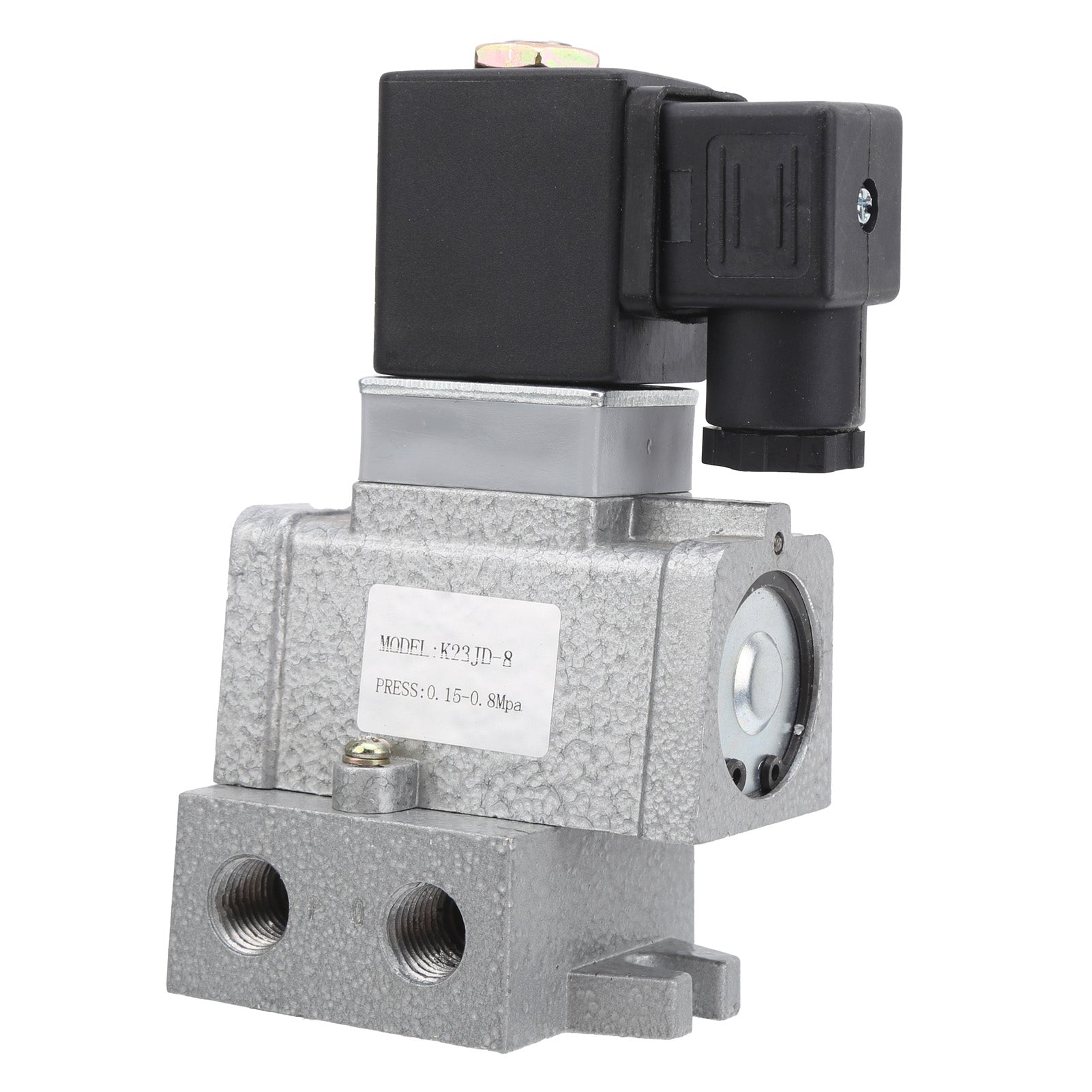

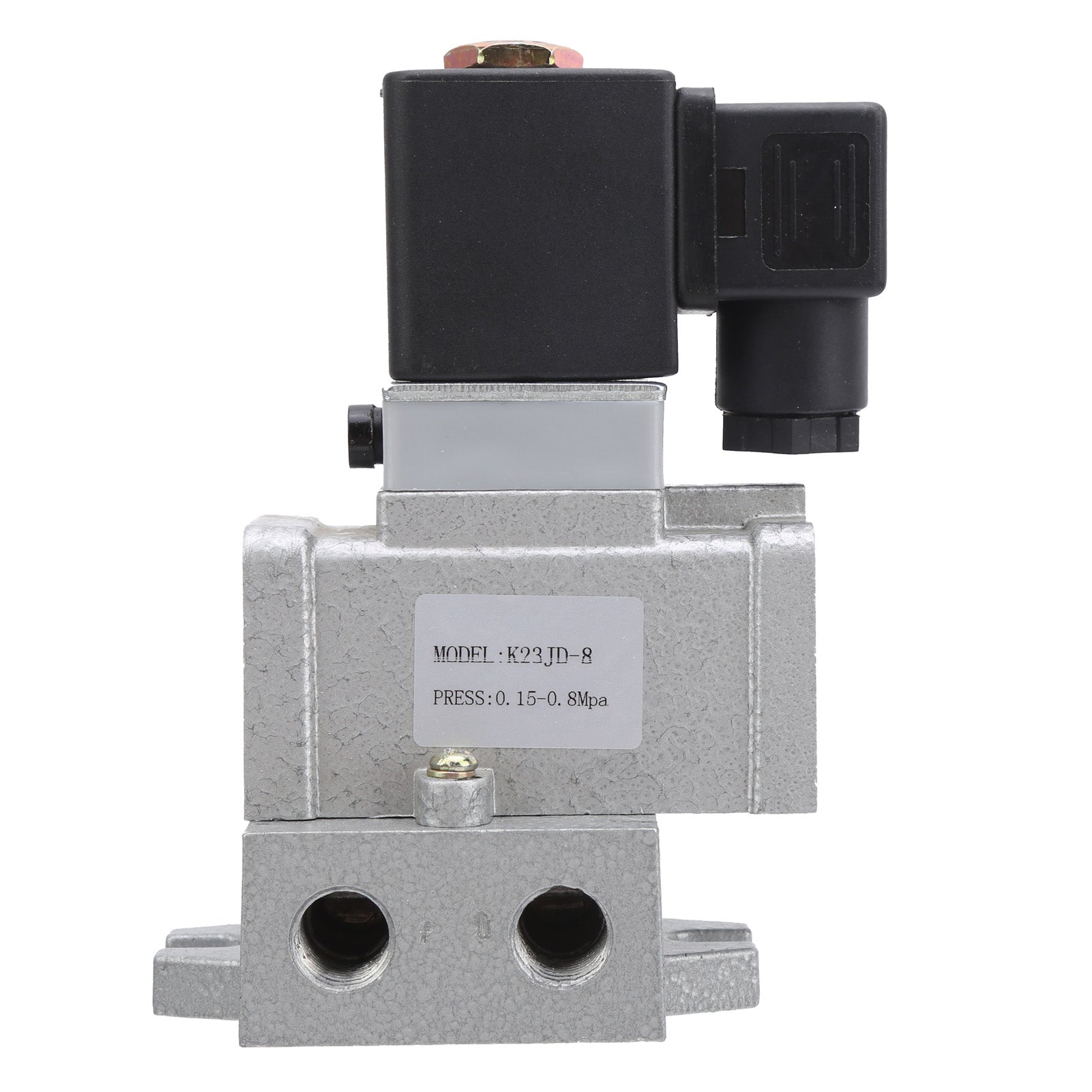

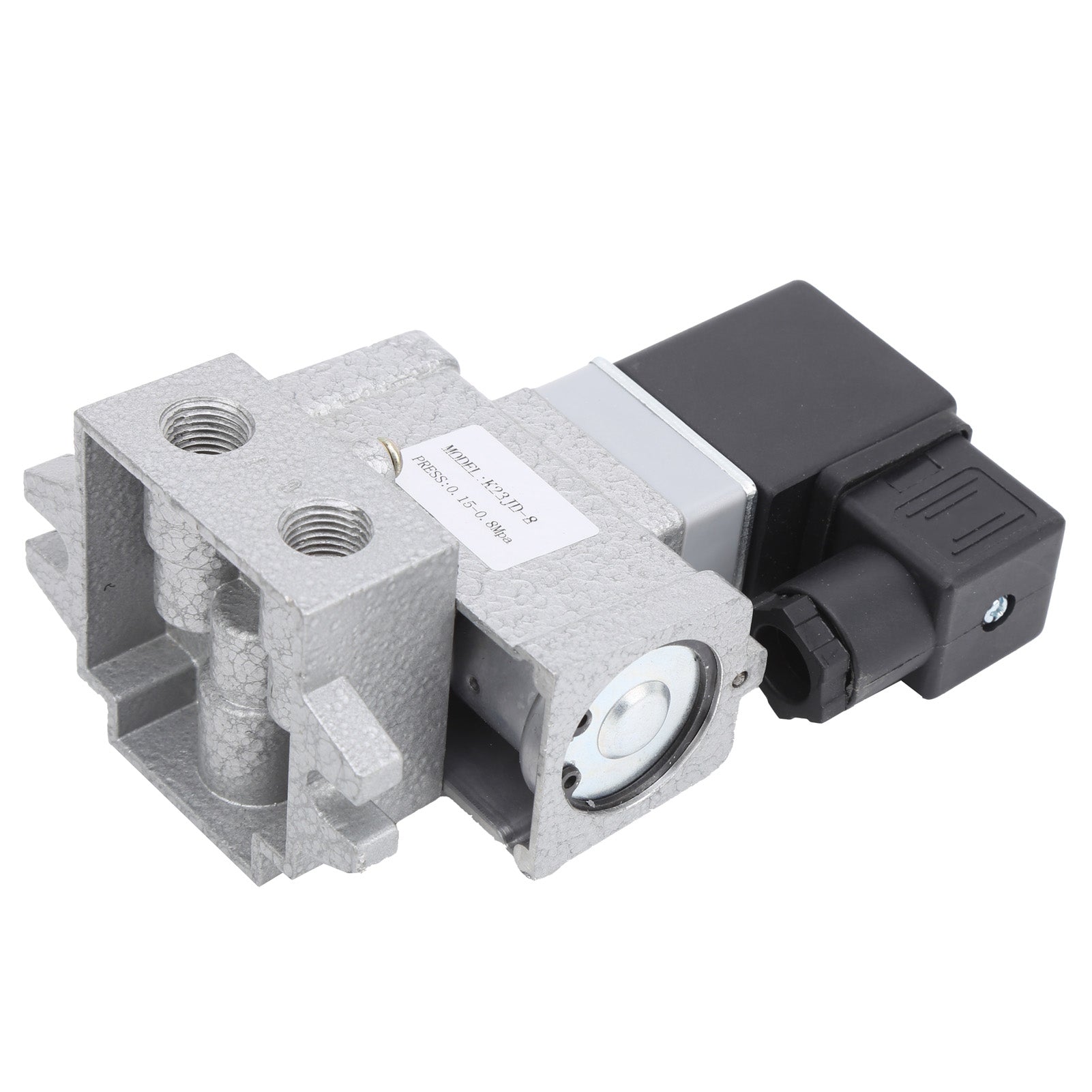

Item Type: Pneumatic Solenoid Valve
Material: Aluminum alloy
Model: K23JD-8
Interface Diameter: G1/4in
Pressure: 0.15～0.8mpa
Reversing Time: ≤0.04s
Maximum Allowable Commutation Frequency: 10Hz
Drain Flow: 10cm³/min
Ambient Temperature: -5--50℃
Medium Temperature: -5--50℃
Life: ≥1500 thousand times
How to Use:
1. During debugging or power failure, manual operation can be used (manual switch "0" position is off, "1" position is on).
2. The inside and outside of the pipe must be cleaned during installation, and then the dust cap must be removed.
3. Suitable to disassemble and wash or add some lubricating oil if it has been stored for a long time or used for a long time or is not flexible.
| Model | Port Size(approx. ) | B | C | D | E | F | G | HD | HQ | I | J |
| K23JD-8 | G1/4in( M12 x 1.25) | 90mm / 3.5in | 14mm / 0.6in | 7mm / 0.3in | 14mm / 0.6in | 68mm / 2.7in | 80mm / 3.1in | 134mm / 5.3in | 91mm / 3.6in | 7mm / 0.3in | 56mm / 2.2in |
1、The spacer sleeve valve structure adopted by the product is very reliable in performance. 2、This valve can be used in a variety of industries and maintenance industries, etc. 3、The solenoid valve has a compact structure and an automatic compensation function for sealing wear. 4、The product with greater flow capacity, it can meet the needs of large flow media. 5、The base plate uses a takeover structure to make installation and maintenance work more convenient.
1 x Pneumatic Solenoid Valve
