Package Dimensions:
Length: 11.00 cm
Width: 9.00 cm
Height: 6.00 cm

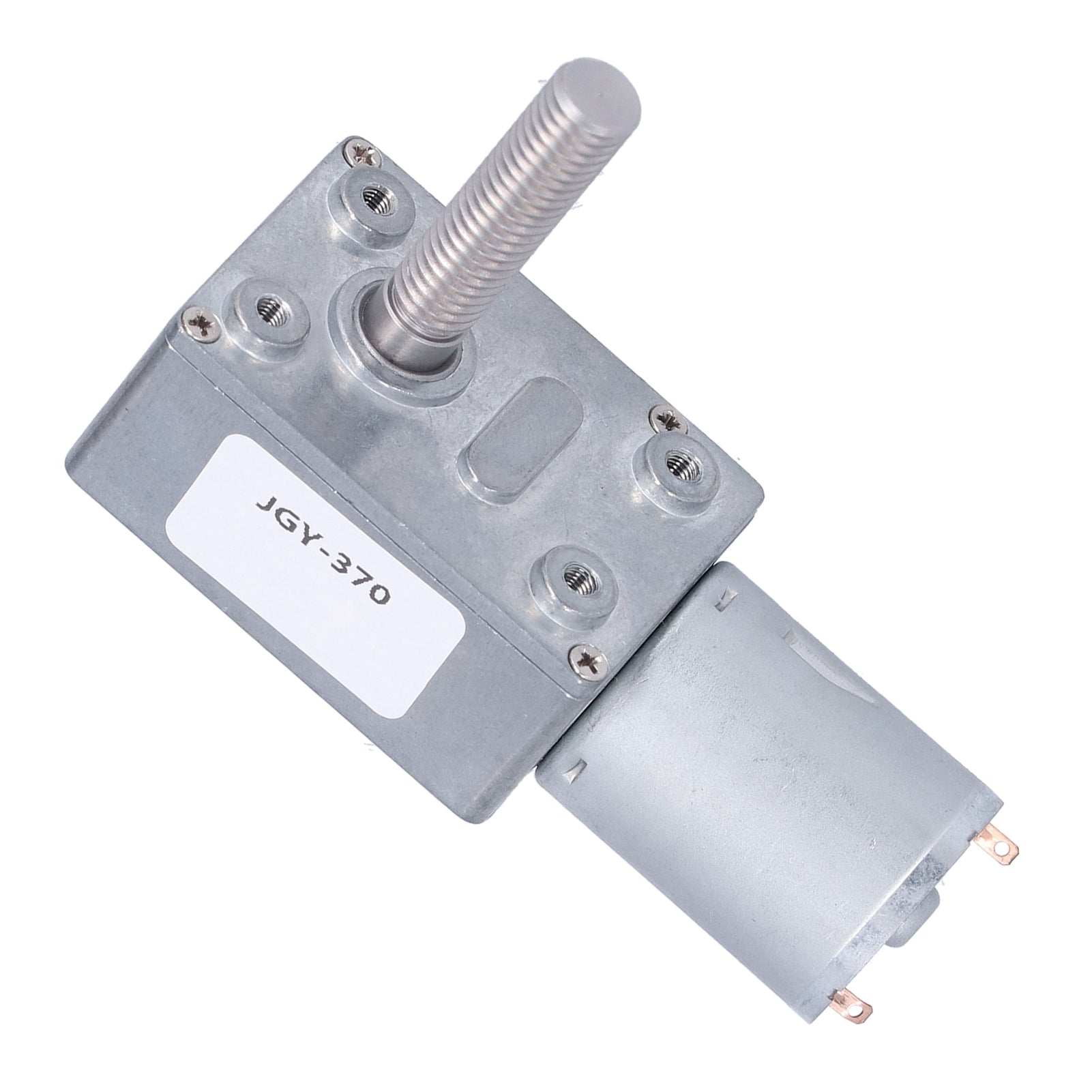

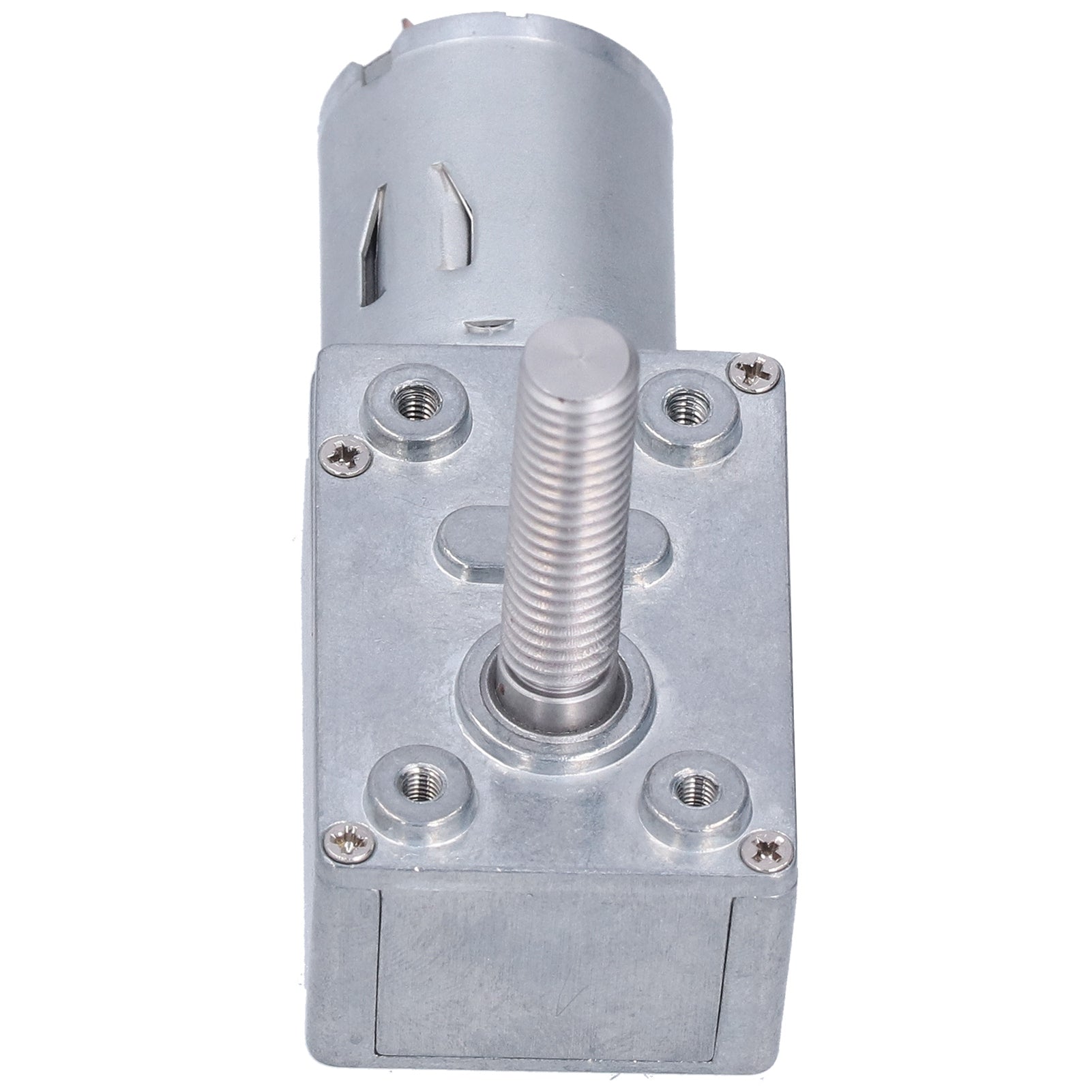

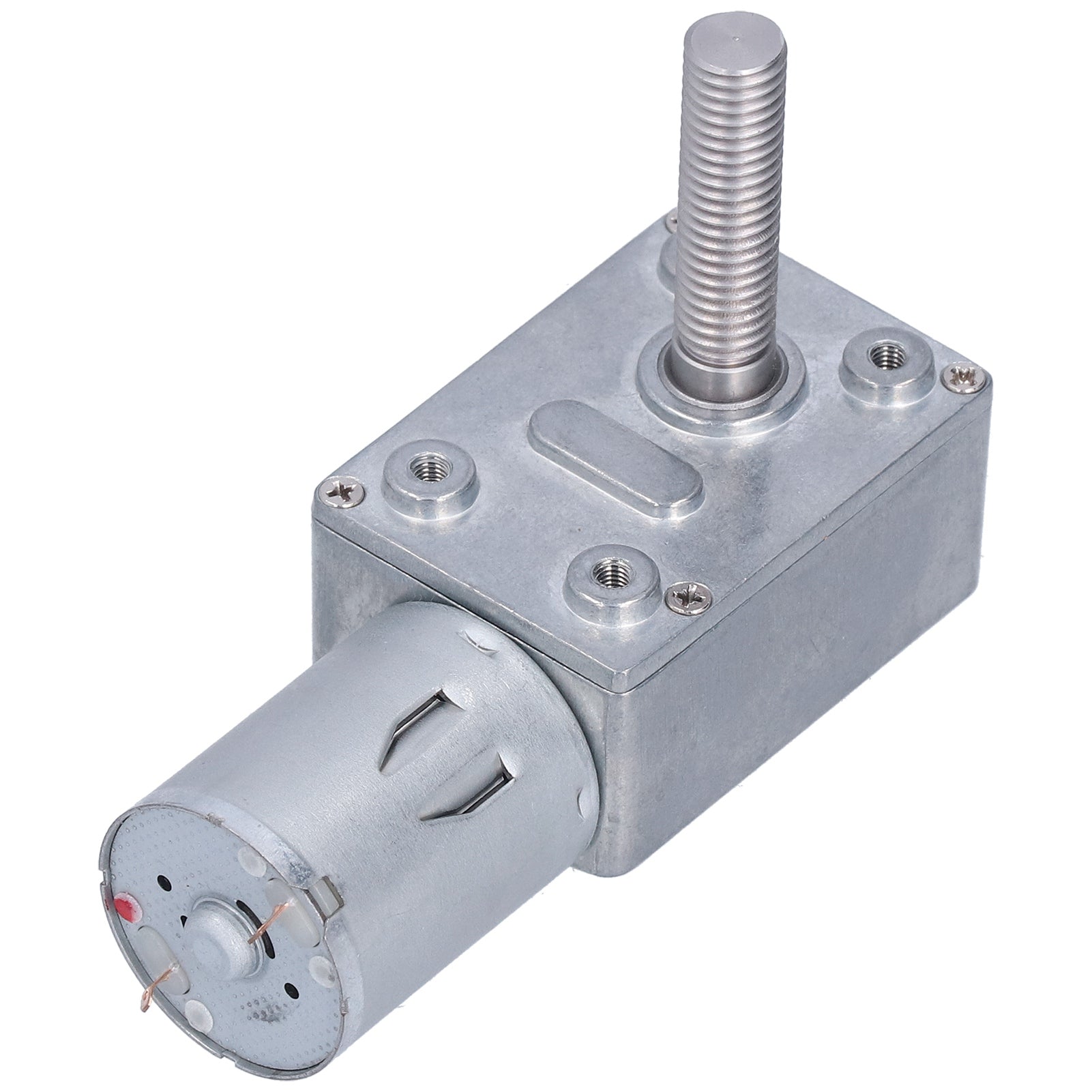

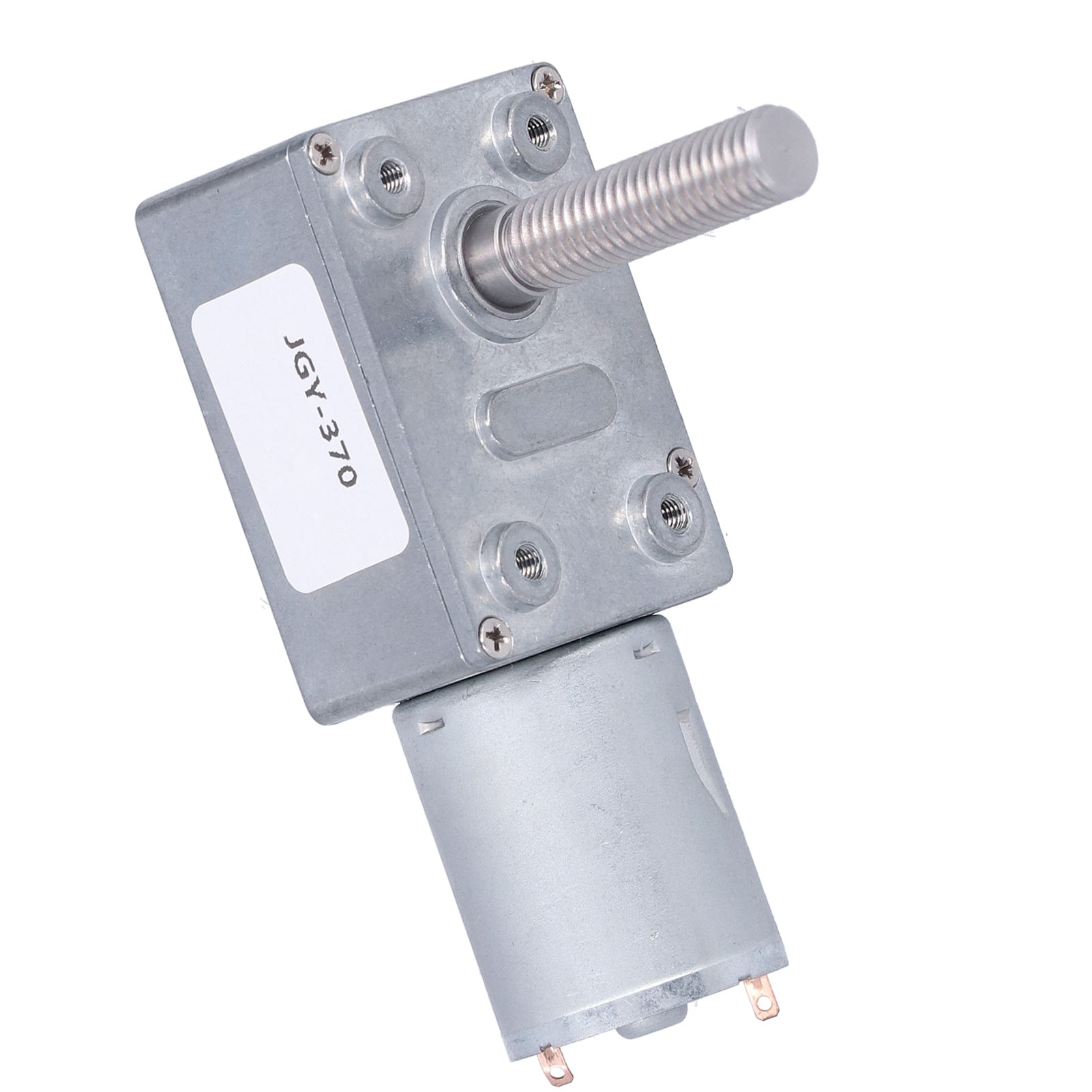

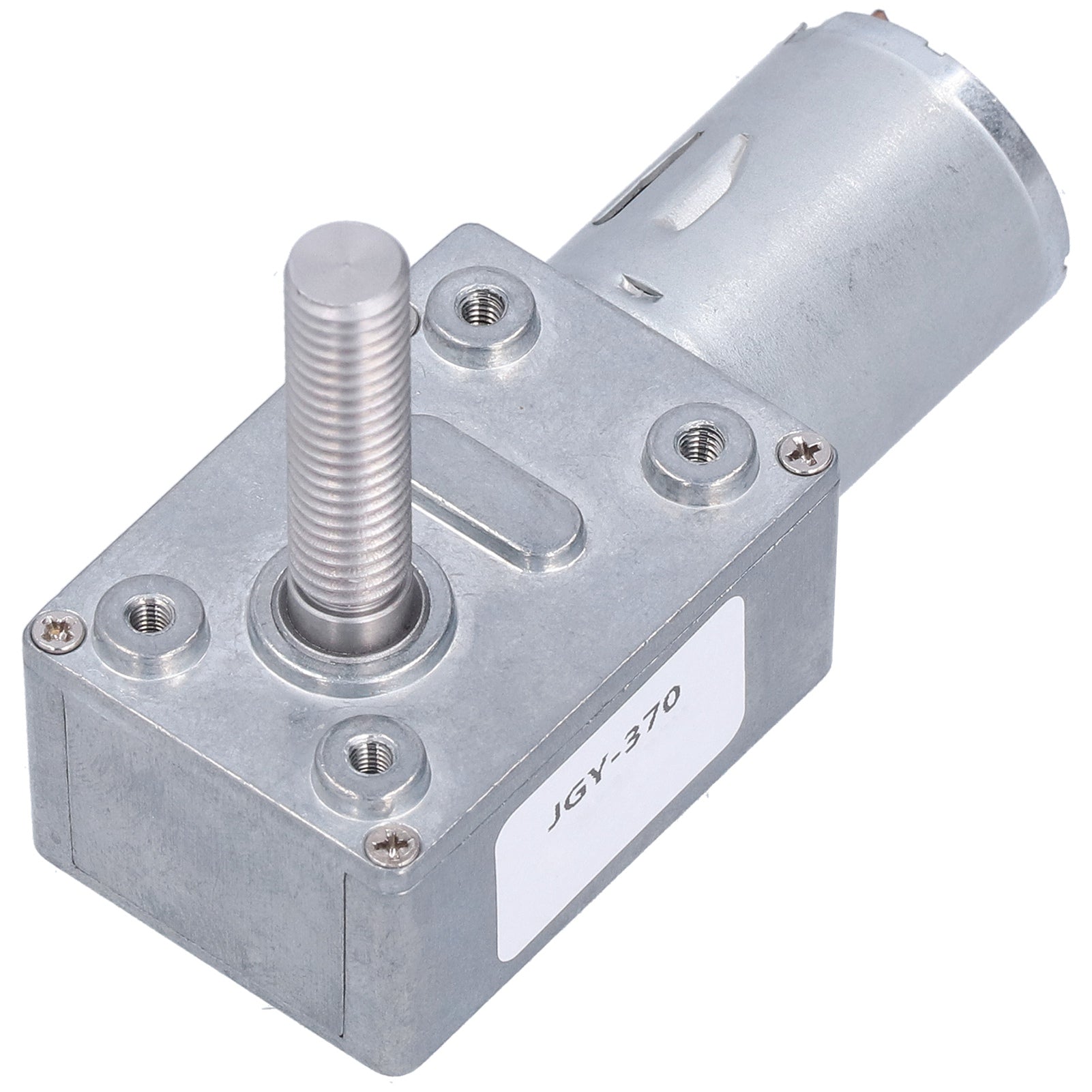

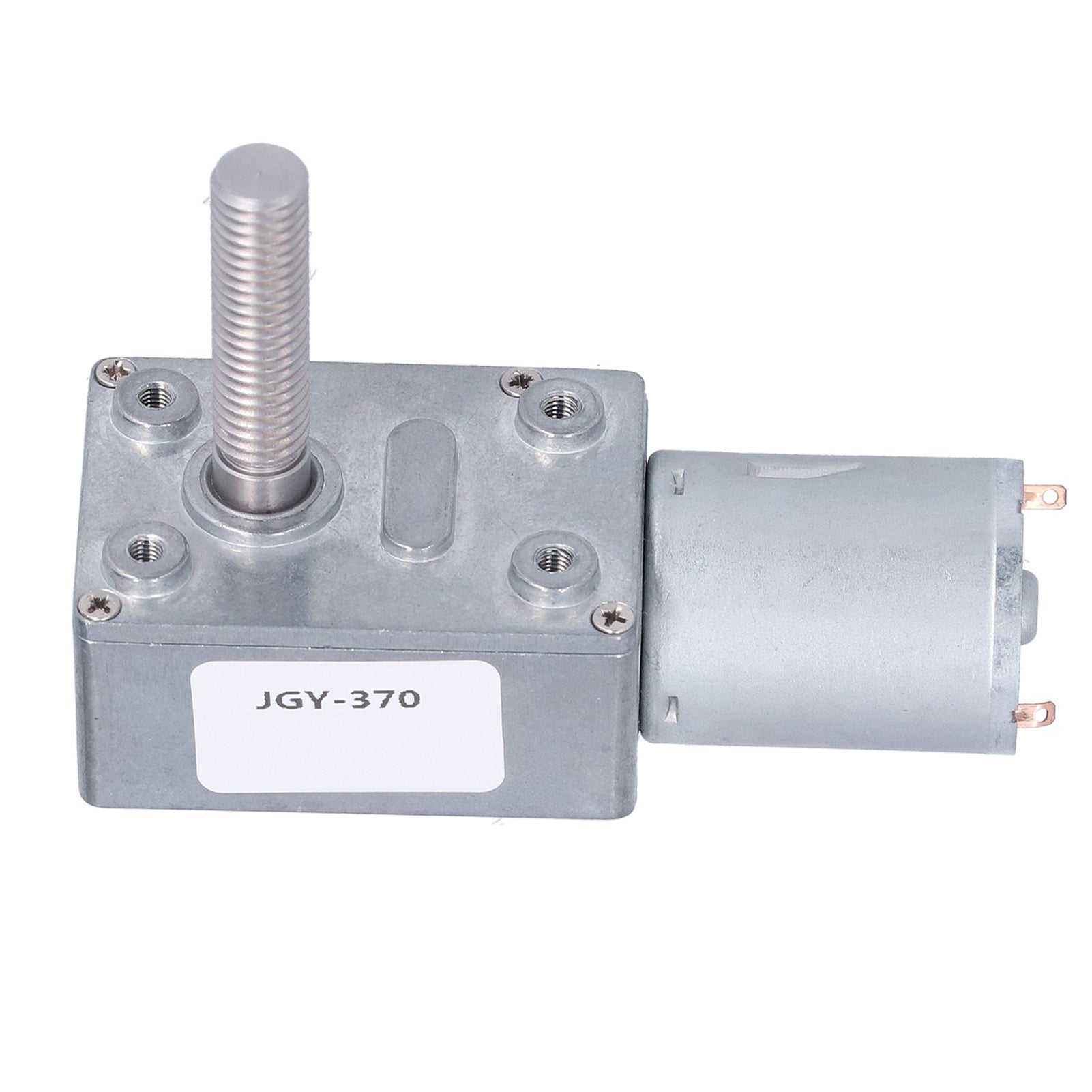

Item Type: Worm Gear Motor
Material: Zinc Alloy, Red Copper, Carbon, Stainless Steel
Purpose: Industrial Drive Device
Operating Voltage: DC 6V/DC 12V
Output Shaft Size (Diameter x Length): Approx. 8 x 33mm / 0.31 x 1.29in
Shaft Type: M8 Threaded Shaft
Whether to Adjust the Speed: Adjustable Speed
Whether Forward and Reverse: Can Be Forward and Reverse
DC 6V Specifications:
| Reduction ratio | 40 | 65 | 90 | 150 | 200 | 260 | 340 | 600 | 1000 |
| No-load Current MA | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 |
| No-load Speed rpm | 150 | 90 | 66 | 40 | 30 | 23 | 18 | 10 | 6 |
| Rated Torsion kg.cm | 0.2 | 0.5 | 0.7 | 2 | 5.3 | 6.7 | 9 | 15.9 | 26.5 |
| Rated Speed rpm | 120 | 70 | 51 | 30 | 22 | 18 | 15 | 7.5 | 4 |
| Rated Current A | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 |
| Maximum Torsion Kg.cm | 0.9 | 1.6 | 2 | 7.5 | 10 | 13 | 18 | 30 | 45 |
| Stalled Current A | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 |
DC 12V Specification:
| Reduction ratio | 40 | 65 | 90 | 150 | 200 | 260 | 340 | 600 | 1000 |
| No-load Current MA | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 |
| No-load Speed rpm | 150 | 90 | 66 | 40 | 30 | 23 | 18 | 10 | 6 |
| Rated Torsion kg.cm | 0.2 | 0.5 | 0.7 | 2 | 5.3 | 6.7 | 9 | 15.9 | 26.5 |
| Rated Speed rpm | 120 | 70 | 51 | 30 | 22 | 18 | 15 | 7.5 | 4 |
| Rated Current A | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 |
| Maximum Torsion Kg.cm | 0.9 | 1.6 | 2 | 7.5 | 10 | 13 | 18 | 30 | 45 |
| Stalled Current A | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 |
1、Premium Material: The shell adopts alloy material makes it more wear‑resistant, non‑rusting, non‑corrosive, better thermal conductivity. 2、Long Service Life: After the gear is ground, the gear is heat treated, which has good wear resistance, long service life and higher performance. 3、Silent Operation: Adopting lubricating oil to make sure the silent operation of motor shaft, and effectively reduces the vibration of the bearing. 4、Carbon Brush: The carbon brush structure take place of copper brush, which ensures long service life, low friction and low power consumption. 5、Stable Performance: 8mm shaft ensures long time operation without going hot, suitable for mini motor making, DIY model.
